AcBel 875W (80 PLUS Gold) Redundant Server Power Supply | R1IA2871A

No Rust or Corrosion

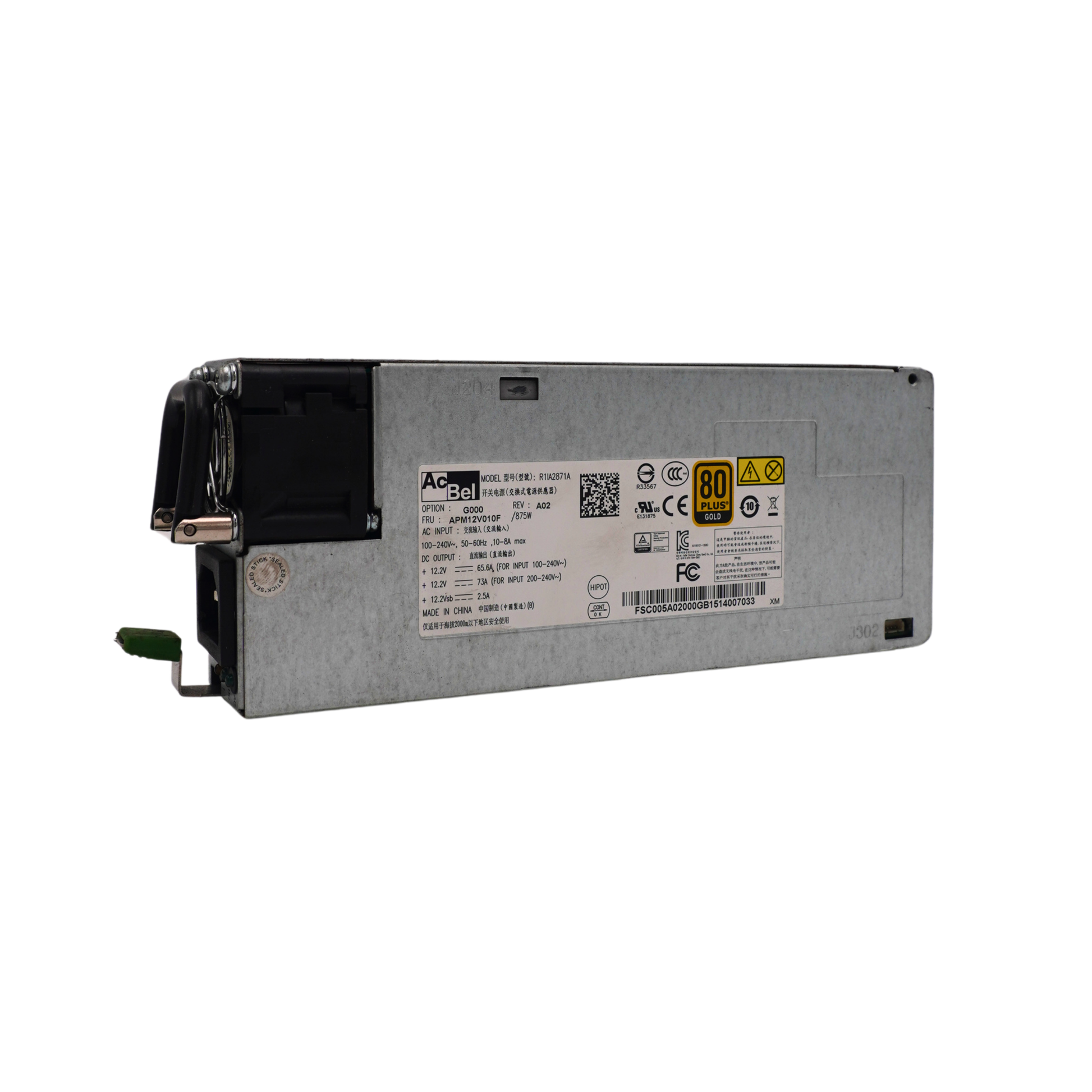

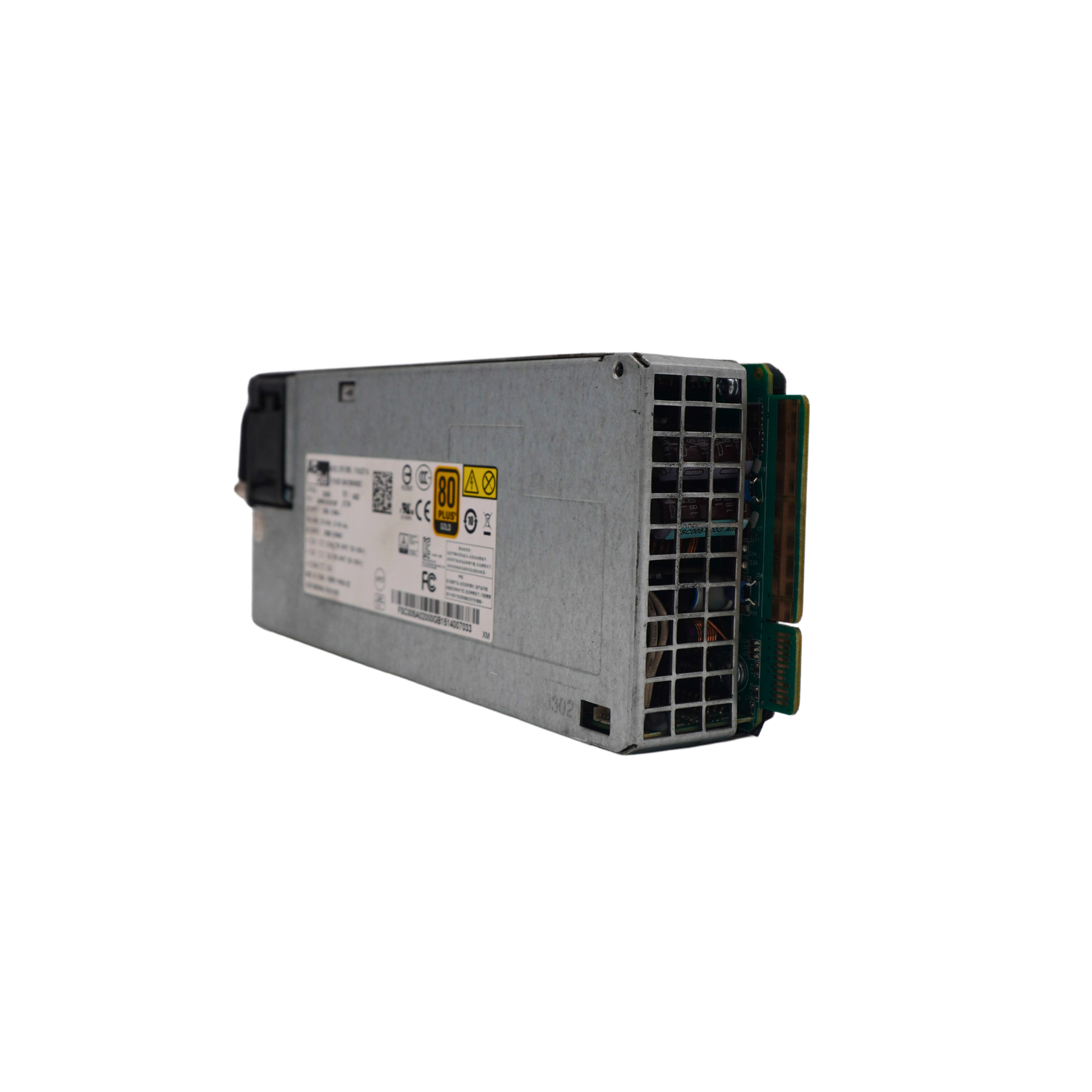

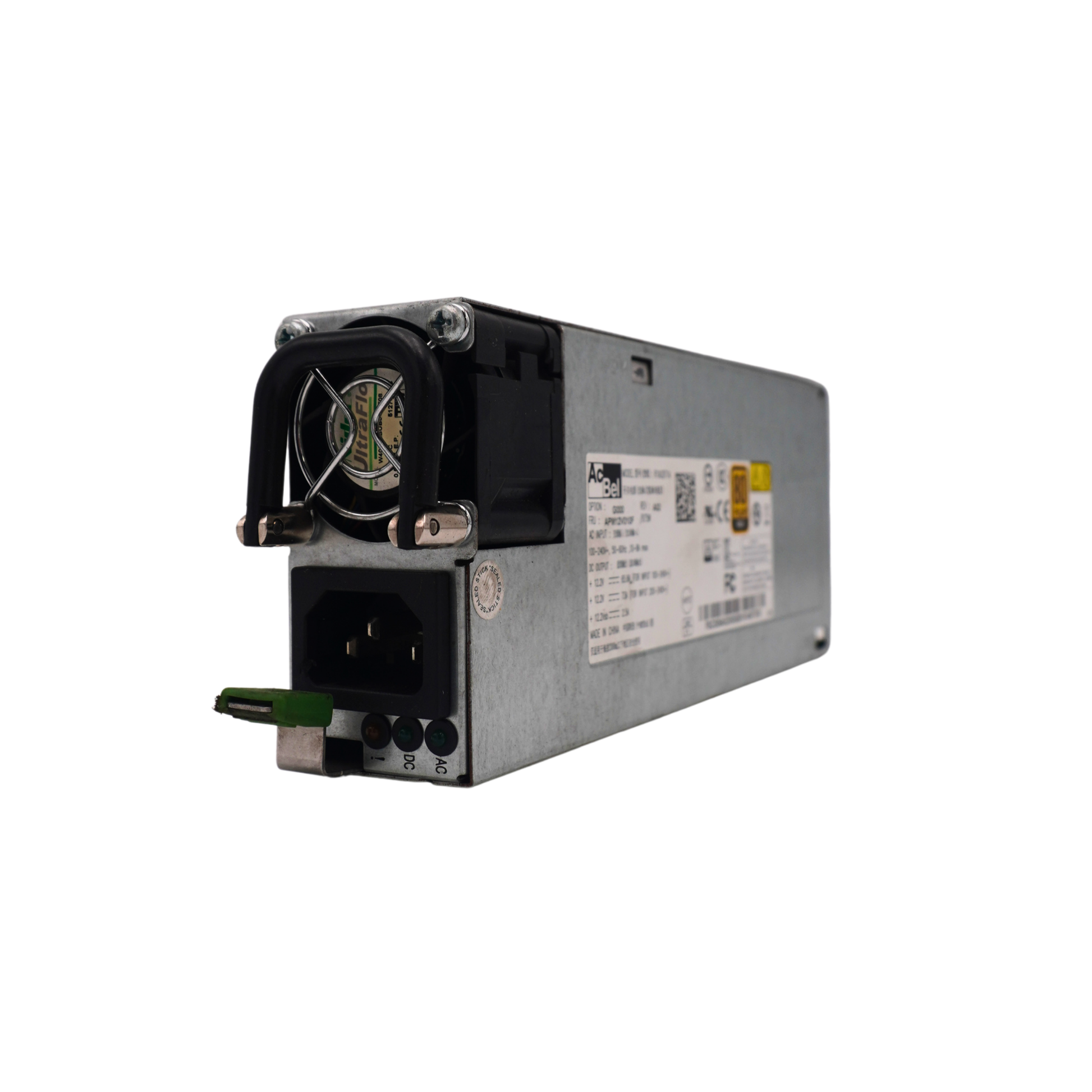

The AcBel R1IA2871A (FRU Part Number: APM12V010F / FSC005A02000) is an enterprise-grade, hot-swappable redundant server power supply module. Featuring an impressive 80 PLUS Gold efficiency certification, this high-capacity unit delivers ultra-stable +12V multi-rail output up to 875W. It is custom-engineered to minimize power overhead, reduce heat output, and ensure uninterrupted 24/7 uptime in demanding data center environments, rackmount servers, and massive storage arrays.

Important Deployment Note: This is a specialized, slide-in hot-swap server power module. It utilizes a gold-finger blade connection backplane design instead of standard wiring and is built exclusively for compatible server chassis cages. It is not compatible with traditional consumer desktop computer motherboards.

Cable Connectors & Delivery

As a modular hot-swap blade unit, it contains no native loose cable bundles. Instead, it interfaces directly with a matching server chassis backplane distribution board via a heavy-duty gold-finger edge connection. When connected to its matching factory enclosure cage, the distribution board typically breaks out into standard enterprise rails:

• 1 x 24-Pin Main ATX System Connector

• 1 x 4+4 Pin / 8-Pin EPS +12V CPU Power Connectors

• Multiple SAS/SATA backplane power feeds and standard 4-pin peripherals
