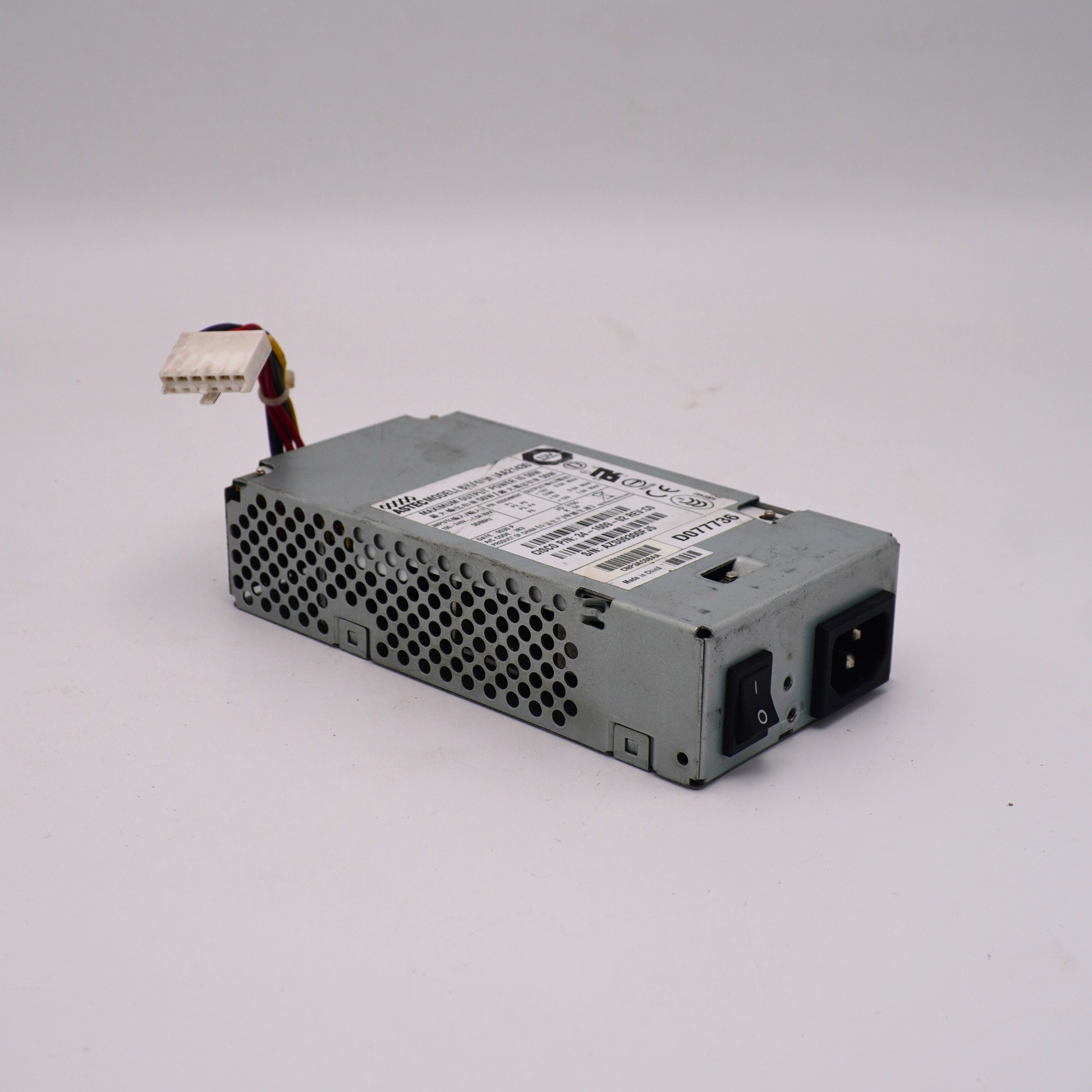

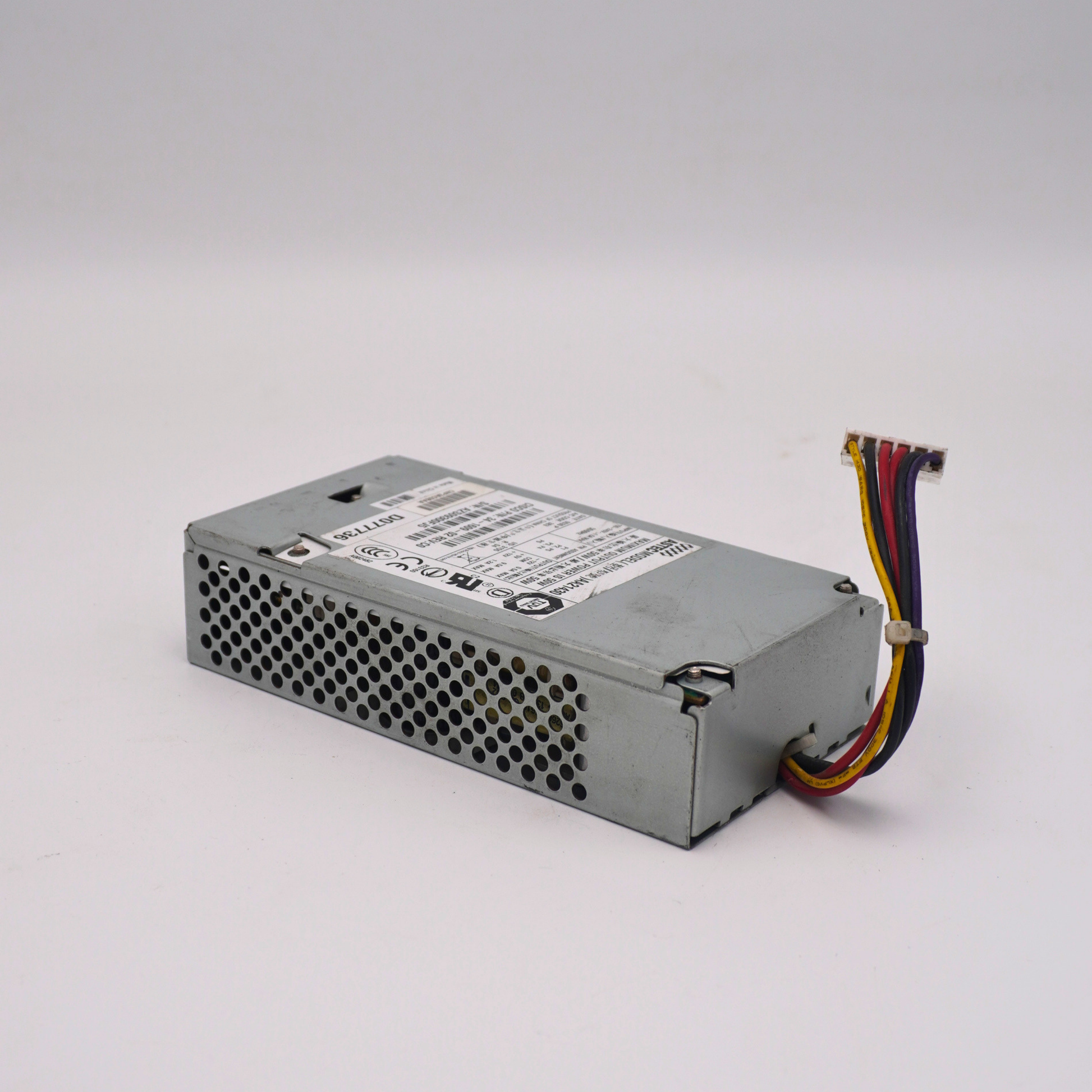

Cisco Astec 50W Router Power Supply | AA21430

No Rust or Corrosion

Important Compatibility Note: This is an internal hardware replacement module intended exclusively for enterprise networking equipment. It uses a specialized internal wiring harness tailored to standard Cisco power planes and is not compatible with conventional desktop PC motherboards.

Pin Assignment & Internal Connectors

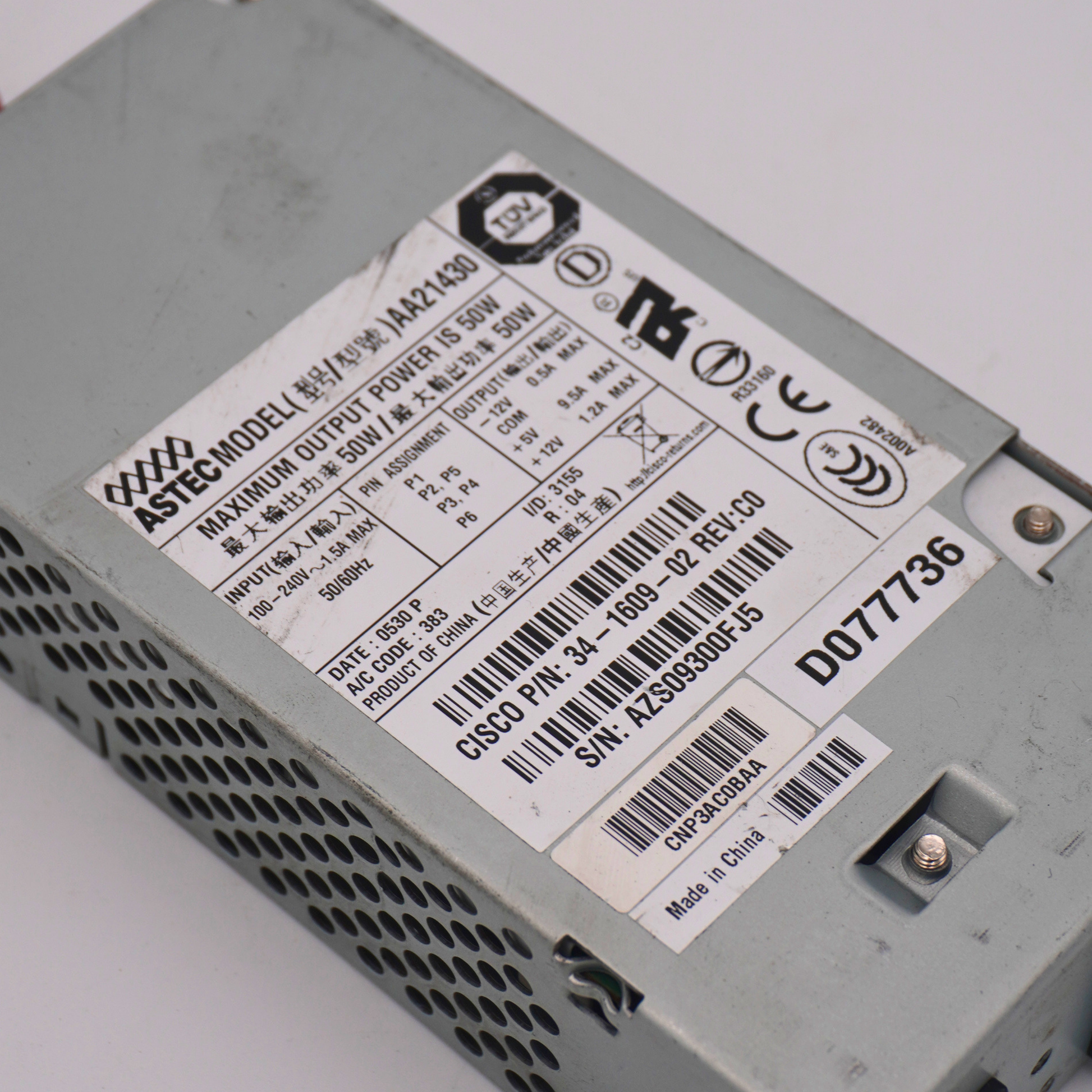

The internal wiring setup maps directly to the onboard pin distribution matrix printed on the factory label:

• 1 x Proprietary 6-Pin Female Main Wire Harness (Delivering multi-rail power to the router's mainboard architecture via Pin configuration P1 through P6)

  • P1, P2, P5: COM (Ground Rails)

  • P3, P4: +5V Output Rail

  • P6: +12V Output Rail
