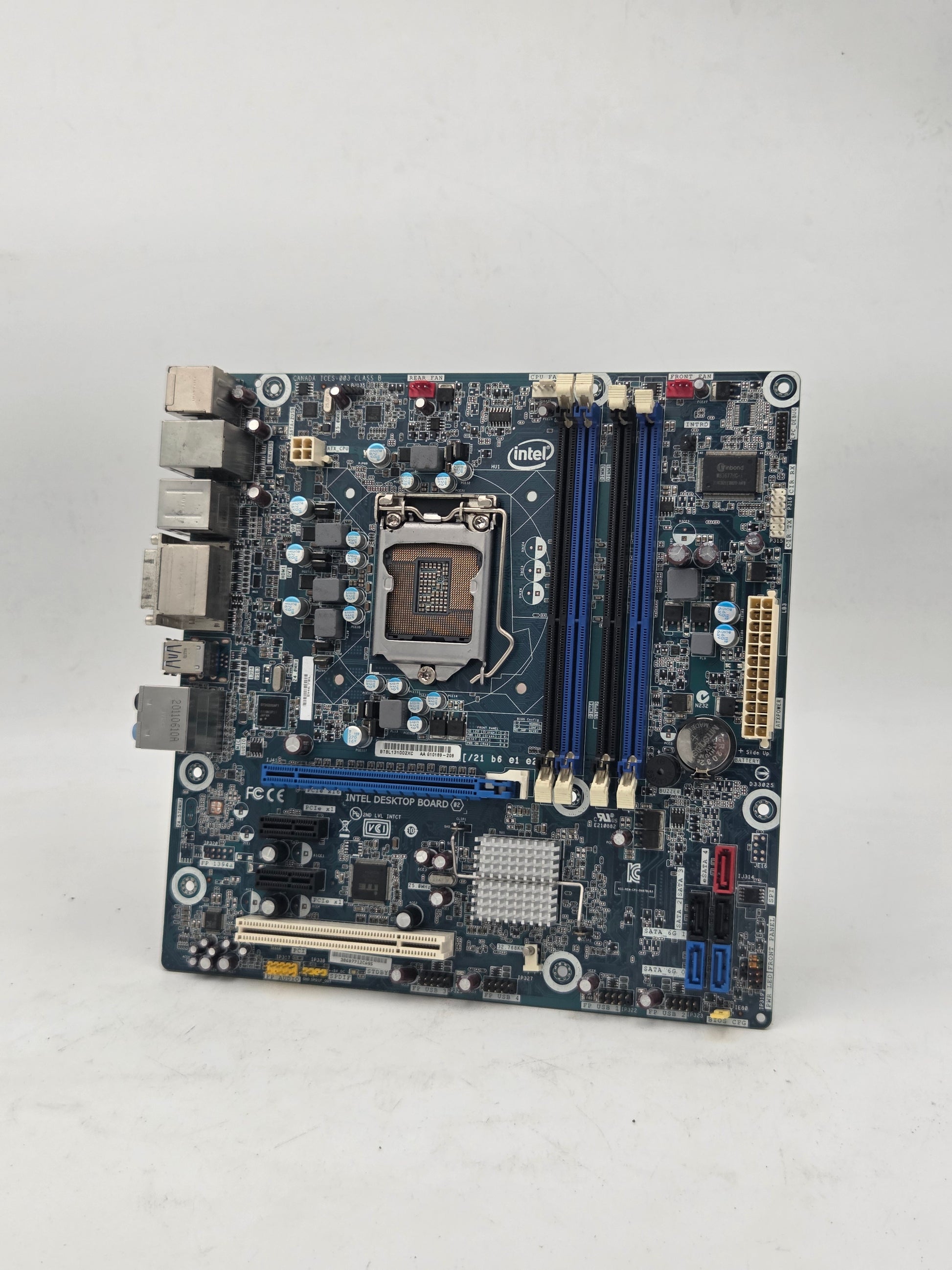

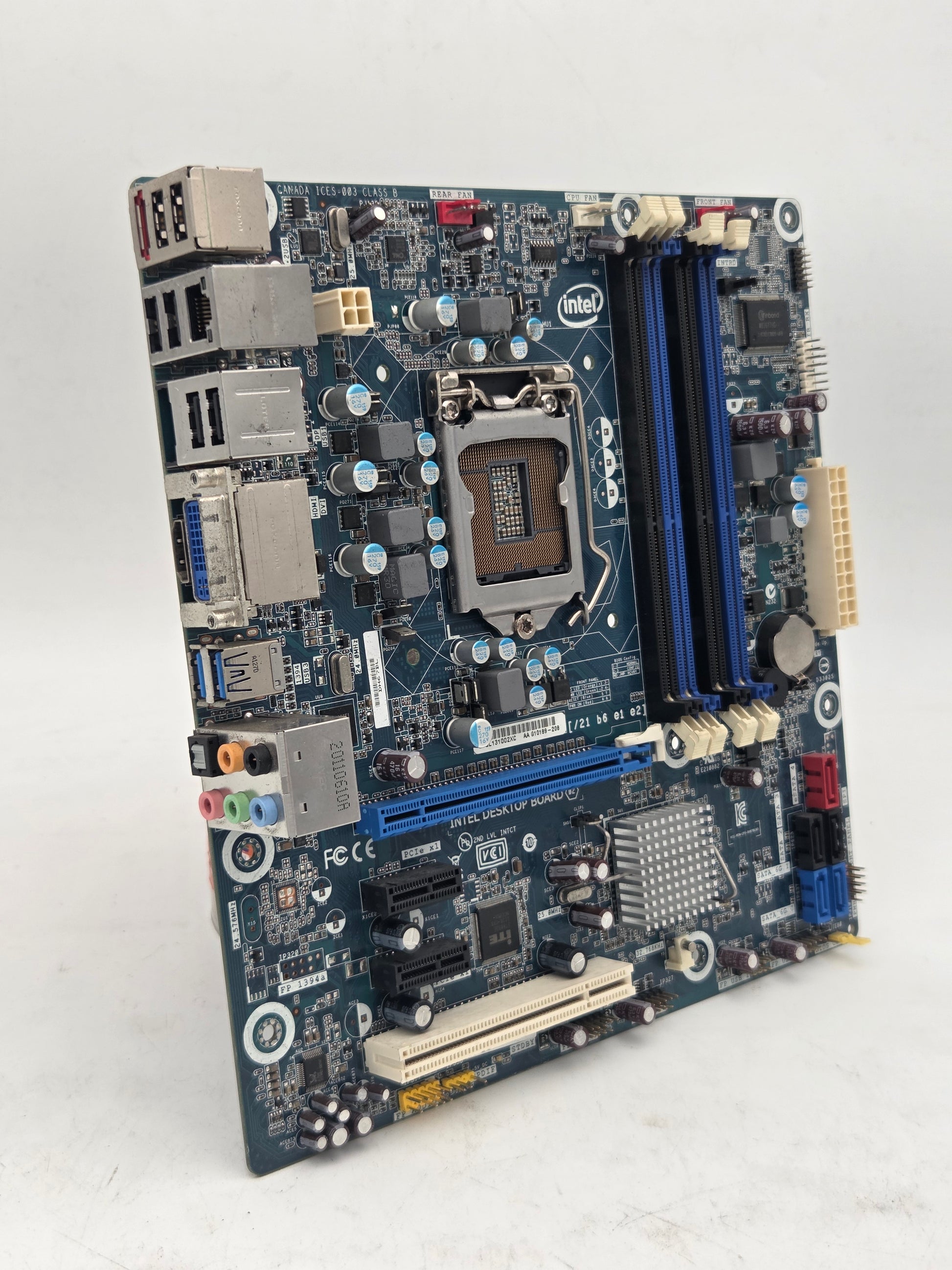

DH67BL Desktop Motherboard - Intel - Socket H2 LGA-1155 With IO Shield

This is a genuine Intel Desktop Board DH67BL, designed to provide a stable and high-performance foundation for your desktop computer. Built in the Micro-ATX form factor and featuring the LGA 1155 socket, this "Media Series" board is engineered for efficient home or office media systems.

Key Features

• Genuine Intel Quality: Designed by Intel for high compatibility, stability, and longevity for your desktop system.

• Socket: LGA 1155 (Socket H2), supporting a range of second and third-generation Intel Core processors.

• Media Series Performance: Features the Intel H67 Express Chipset, optimized for media-rich environments.

• Versatile Connectivity: Equipped with PCIe x16 for graphics, along with additional PCIe x1 slots for peripheral expansion.

• Memory Support: Dual-channel DDR3 memory support with four DIMM slots for high-capacity RAM configurations.

Technical Specifications

• Model: DH67BL

• Chipset: Intel H67 Express

• Socket Type: LGA 1155 (Socket H2)

• Memory Slots: 4x DDR3 DIMM slots

• Expansion Slots: 1x PCIe x16, 2x PCIe x1, 1x PCI

• Form Factor: Micro-ATX

Connector/Interface Information

This board utilizes a standard layout compatible with most standard ATX and Micro-ATX cases. It requires a standard 24-pin ATX main power connector and a 4-pin ATX_CPU power connector.
